HVL - SINGLE ACTING VERY LOW HEIGHT PANCAKE CYLINDERS
- Capacities from 10 to 104 tonnes
- Stroke length 6mm
- Working pressure 700 Bar

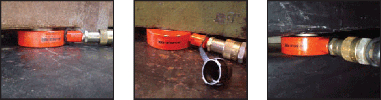

The HVL Pancake cylinder range combines a very low closed height with a 6mm stroke, providing a precise adjusting and lifting force in very confined work areas. Ideally suited for applications requiring alignment of machinery, turbines, heavy structures etc... All models are single acting, load return design. The base of all HVL cylinders must be fully supported during use.
>> Single acting load return
>> Surface treated piston rod
>> Low friction bearing surfaces
>> Anti-extrusion seals
Did you know...

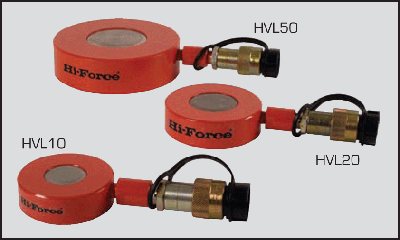

Hi-Force HVL pancake cylinders are the lowest closed height hydraulic cylinders available on the market.
If you don't have the space, we have die solution !
Model
number |
Capacity
tonnes |
Stroke
mm |
Oil cap.
cm3 |
Cyl. eff. area
cm2 |
Weight
kg |
| HVL10 |
10 |
6 |
9 |
14.4 |
1.6 |
| HVL20 |
20 |
6 |
17 |
28.6 |
2.6 |
| HVL30 |
32 |
6 |
27 |
45.6 |
3.0 |
| HVL50 |
50 |
6 |
43 |
71.3 |
7.2 |
| HVL100 |
104 |
6 |
88 |
146.5 |
15.6 |

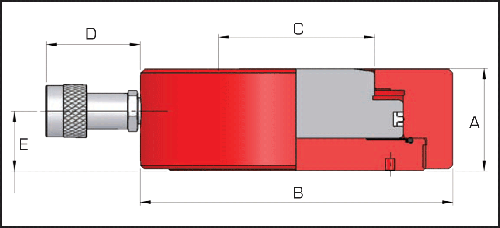

Dimensions in mm |
A |
B |
C |
D |
E |
28 |
87 |
38 |
100 |
16.0 |
32 |
104 |
52 |
100 |
19.0 |
34 |
120 |
60 |
100 |
19.5 |
45 |
158 |
75 |
100 |
29.0 |
65 |
200 |
100 |
65 |
37.0 |
|
