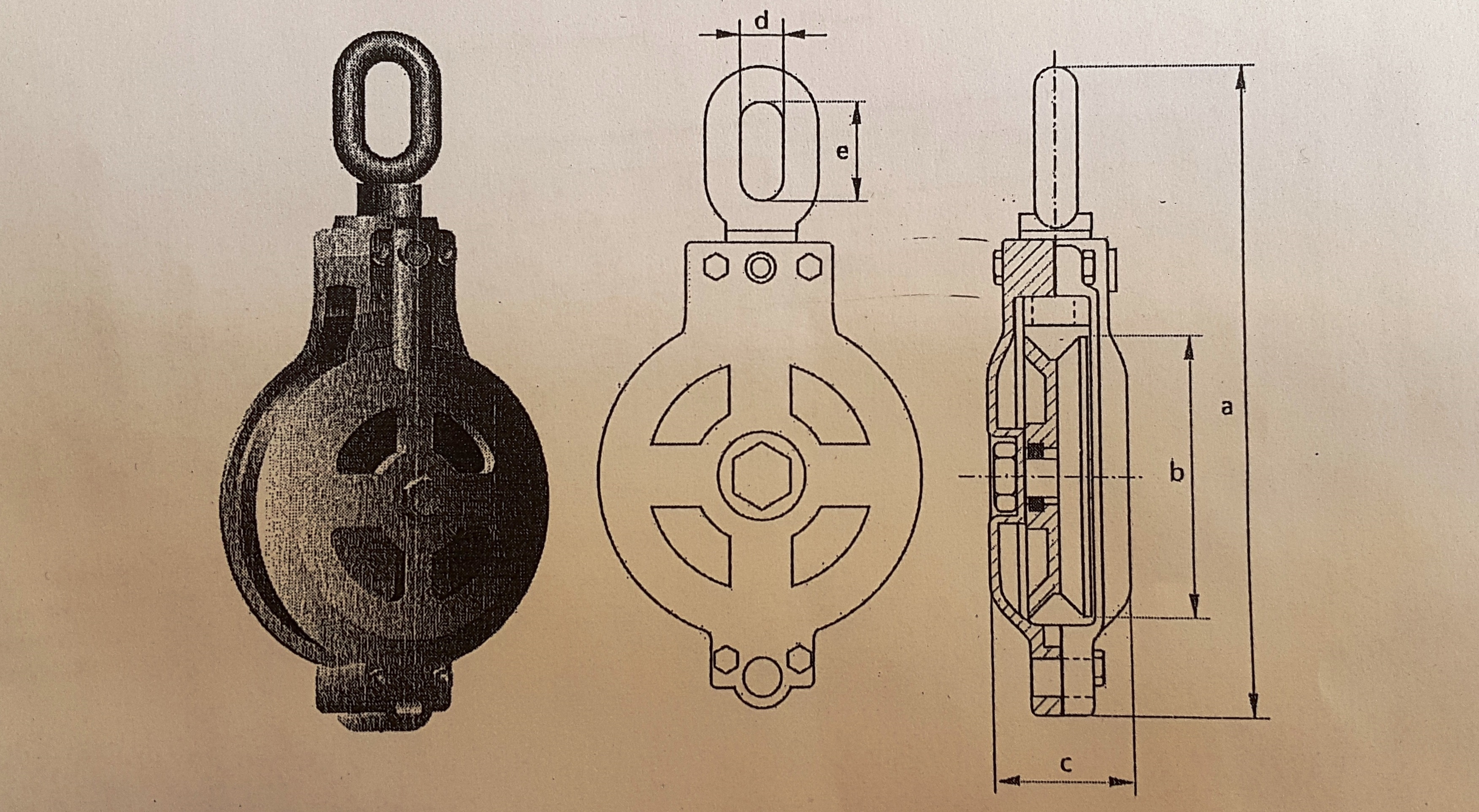

ГРУЗОВЫЕ БЛОКИ АМЕРИКАНСКОГО ОБРАЗЦА - 1 ШКИВНЫЕ / ОВАЛЬНОЕ КОЛЬЦО
|
working load limit
|
diameter wire rope
|
lenght
|
diameter
|
thickness
|
width inside
|
length inside
|
weight per pce
|
|
tons
|
mm
|
a
mm
|
b mm
|
c mm
|
d mm
|
e mm
|
kg
|
| 4
|
10-13
|
437
|
156
|
82
|
35
|
75
|
11
|
|
6
|
20-22
|
512
|
200
|
104
|
35
|
75
|
20
|
|
6
|
20-22
|
610
|
260
|
124
|
40
|
85
|
27
|
|
10
|
20-22
|
750
|
305
|
165
|
54
|
125
|
40
|
|
10
|
24-26
|
840
|
355
|
165
|
54
|
125
|
55
|
|
20
|
32-35
|
1040
|
406
|
180
|
73
|
170
|
100
|
|
32
|
26-28
|
1018
|
430
|
192
|
73
|
170
|
125
|
|
40
|
26-28
|
1095
|
460
|
210
|
73
|
170
|
150
|
- Material: carbon steel sheave with taper roller bearing
- Safety factor: MBL equals 4xWLL
- Finish: painted
- Note: Working Load Limit is on the headlifting
- Certification: test certificates can be supplied upon request
|
