ОКОНЧАНИЕ ТРОСА - КЛИНОВЫЙ ЗАЖИМ С ПАЛЬЦЕМ

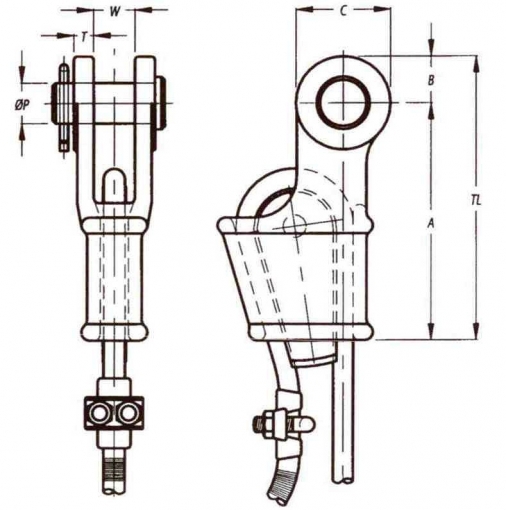

Stock No.	Model No.	MBL (tons)	for wire o		Dimensions (mm)							Weight (kgs)
Stock No.	Model No.	MBL (tons)	(mm)	(inch)	A	B	C	P	T	TL	W	Weight (kgs)
44.000.25.10	OWS 0.25P	8	7-8	5/16	110	19	36	16	9	129	18	0.8
44.000.50.10	OWS 0.5 P	12	9-10	3/8	142	23	46	20.6	11	165	20.5	1.7
44.001.00.10	OWS 1 P	20	11-13	1/2	146	29	57	25	12	175	25	2.1
44.002.00.10	OWS 2 P	25	14-16	5/8	176	35	70	30	15	211	31	4
44.003.00.10	OWS 3 P	40	18-19	3/4	212	40	80	35	16	252	38	7
44.004.00.10	OWS 4 P	55	20-22	7/8	240	48	95	41	19	288	44	10
44.005.00.10	OWS 5 P	75	24-26	1	274	55	110	51	22	329	51	15
44.006.00.10	OWS 6 P	90	27-29	1 1/8	310	65	130	57	25	375	57	21
44.007.00.10	OWS 7 P	110	30-32	1 1/4	350	73	146	64	28	423	63	31
44.008.00.10	OWS 8 P	125	34-36	1 3/8	400	74	148	64	28	474	69	37
44.009.00.10	OWS 9 P	150	37-39	1 1/2	450	80	143	70	30	530	76	51
44.010.00.10	OWS 10 P	170	40-42	1 5/8	500	87	160	76	33	587	76	64
44.011.00.10	OWS 11 P	225	43-48	1 3/4-1 7/8	550	100	186	89	39	650	89	96
44.012.00.10	OWS 12 P	280	49-52	2	640	105	194	95	46	745	101	130
44.013.00.10	OWS 13 P	360	54-58	2 1/4	660	125	230	108	54	785	114	180
44.014.00.10	OWS 14 P	425	60-68	2 1/2	835	135	250	121	60	970	127	275
44.015.00.10	OWS 15 P	460	72-76	3	1000	150	270	133	76	1150	146	440
44.016.00.10	OWS 16 P	625	81 -86	3 1/4-3 3/8	1100	152	300	140	79	1252	159	510

MBL = Minimum Breaking Load.
Standard painted blue, but can be supplied galvanised (last digits 20).
All sockets can be supplied with EN 10204/DIN 50049 3.1B certificate (no additional costs).
Other than 3.1 В certificates on request and at additional costs.
