СООТВЕТСТВИЕ РАДИУСА ЖЕЛОБА ДИАМЕТРУ ТРОСА - NEN 3508

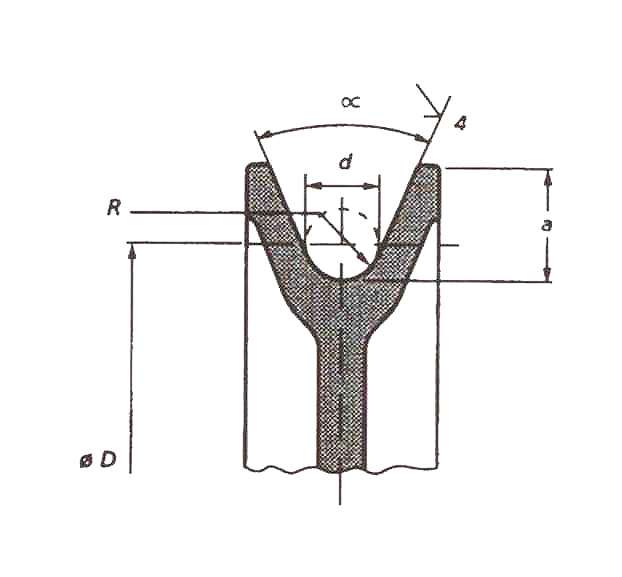

D = d •h1 •h2
a = 1.5d
alfa= 45°
R = 0.525 d <= r <= 0.55 d

Groove radius according NEN 3508/DIN 15061

Rope
diam

Radius
(mm)

6

3.5

7

4

8

4.5

9

5

10

5.5

11

6

12

6.5

13

7

14

7.5

15

8

16

8.5

17

9

18

9.5

19

10

20

11

21

11.5

22

12

23

12.5

24

13

25

13.5

26

14

27

14.5

28

15

29

15.5

30

16

31

16.5

31

16.5

Rope
diam
Radius
(mm)

32

17

33

17.5

34

18.5

35

19

36

19.5

37

20

38

20.5

39

21

40

21.5

41

22

42

22.5

43

23

44

24

45

24.5

46

25

47

25.5

48

26

49

26.5

50

27

51

27.5

52

28

53

28.5

54

29

55

29.5

56

30
