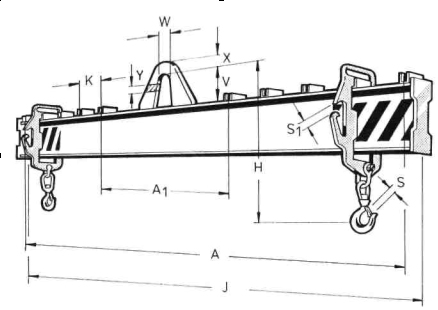

ТРАВЕРСА ПРЯМАЯ РЕГУЛИРУЕМАЯ*
 |
Stock |
WLL
(TONS) |
Dimensions
(mm) |
Weight
(kg)
+/-5% |
A |
A1 |
H |
J |
K |
S |
S1 |
V |
W |
X |
Y |
04.315.010.010 04.315.010.016 04.315.010.025 04.315.010.031 |
1,0
1,0
1,0
1,0 |
1000 1600 2500
3150 |
400 700 1000
1050 |
480 480 480
480 |
1080 1680 2580
3230 |
150 150 150
150 |
22 22 22 22 |
20 20 20 20 |
125 125 125
125 |
55
55
55
55 |
35 35 35 35 |
15 15 15 15 |
26
39
48
57 |
04.315.016.016 04.315.016.025 04.315.016.031 04.315.016.040 |
1,6
1,6
1,6
1,6 |
1600 2500 3150
4000 |
800 900 1150
1200 |
550 550 550
550 |
1680 2580 3230
4080 |
200 200 200
200 |
24 24 24 24 |
20 20 20 20 |
125 125 125
125 |
55
55
55
55 |
35 35 35 35 |
15 15 15 15 |
46
65
78
95 |
04.315.025.025 04.315.025.031 04.315.025.040
04.315.025.050 |
2,5
2,5
2,5
2,5 |
2500 3150 4000
5000 |
900 1150 1200
1400 |
590 590 630
630 |
2585 3235 4110
5110 |
200 200 200
200 |
24 24 24 24 |
25 25 25 25 |
150 150 150
150 |
70
70
70
70 |
45 45 45 45 |
20 20 20 20 |
81
96
155
192 |
04.315.040.025 04.315.040.031 04.315.040.040
04.315.040.050 |
4,0
4,0
4,0
4,0 |
2500 3150 4000
5000 |
1000 1150 1000
1500 |
700 700 765
765 |
2610 3260 4110
5110 |
250 250 250
250 |
28 28 28 28 |
30 30 30 30 |
175 175 175
175 |
80
80
80
80 |
50 50 50 50 |
20 20 20 20 |
117
138
222
265 |
04.315.063.031 04.315.063.040
04.315.063.050 04.315.063.063 |
6,3
6,3
6,3
6,3 |
3150 4000 5000
6300 |
1150 1000 1500
1800 |
880 880 950
950 |
3260 4110 5110
6410 |
250 250 250
250 |
34 34 34 34 |
30 30 30 30 |
210 210 210
210 |
95
95
95
95 |
55 55 55 55 |
30 30 30 30 |
223
268
415
505 |
04.315.100.031 04.315.100.040
04.315.100.050 04.315.100.063 |
10,0 10,0 10,0
10,0 |
3150 4000 5000
6300 |
1350 1000 1400
1500 |
1050 1050 1100
1100 |
3280 4130 5130
6430 |
300 300 300
300 |
42 42 42 42 |
40 40 40 40 |
235 235 235
235 |
100 100 100 100 |
70 70 70 70 |
30 30 30 30 |
314
373
519
623 |
04.315.160.040 04.315.160.050
04.315.160.063 |
16,0 16,0 16,0 |
4000 5000 6300 |
1600 1800 1500 |
1280 1280 1330 |
4130 5130 6430 |
400 400 400 |
52 52 52 |
50 50 50 |
300 300 300 |
110 110 110 |
85 85 85 |
30 30 30 |
541
634
861 |
|
